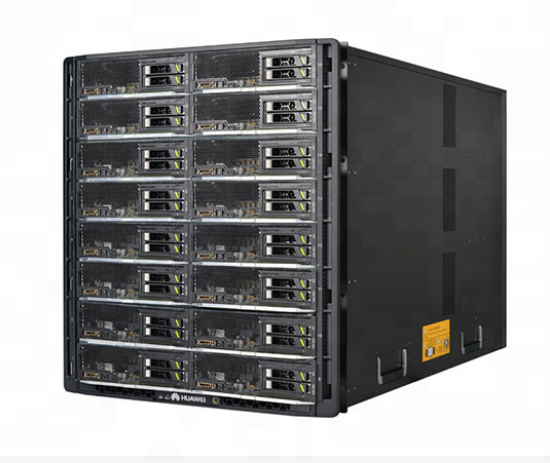

Form Factor
12U
Blade
16 half-width slots or 8 full-width slotsSupports flexible configurations of single-slot, dual-slot, full-width, and half-width nodes
Switch Modules
4 slots for Huawei CX series switch modules provide a midplane switching capability of 15.6 Tbit/sCX110 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlinkCX111 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlinkCX116 GE pass-through module: 32 x GE uplink, 32 x GE downlinkCX210 8G FC switch module: 8 x 8G FC uplink, 16 x 8G FC downlinkCX220 16G FC Switch Module: 8 x 16G FC uplink, 16 x 16G FC downlinkCX310 10 GE switch module: 16 x 10 GE uplink, 32 x 10 GE downlinkCX311 10 GE/FCoE converged switch module: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE downlinkCX317 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlinkCX611 InfiniBand switch module (QDR 40 Gbit/s, FDR 56 Gbit/s): 18 x QDR/FDR uplink, 16 x QDR/FDR downlinkCX710 40 GE switch module: 8 x 40 GE uplink, 16 x 40 GE downlinkCX912 multi-plane switch module; supports FC ports: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE + 16 x 8G FC downlinkCX915 multi-plane switch module: 4 x 10 GE + 12 x GE + 8 x 8G FC uplink, 32 x GE + 16 x 8G FC downlink
PSU
AC/DC PSU: maximum six 3,000W/2,000W AC or six 2,500W DC hot-swappable PSUs in N+N or N+M redundancy mode
Fan Modules
Provides 14 hot-swappable fan modules in N+1 redundancy mode
Management
● Uses HMMs in 1+1 redundancy mode, supports standard management interfaces, such as SNMP and IPMI, manages computing and switching devices in a unified manner, and provides comprehensive management functions, such as a GUI, remote KVM, virtual media, SOL, remote control, hardware monitoring, intelligent power supply, and historical power consumption ● Provides value-added management features, such as multi-frame cascading management, graphic network configuration, and stateless computing
Power Supply
110V/220V AC or –48V DC
Operating Temperature
5°C to 40°C
Dimensions
Height: 530 mm (20.87 in.)Width: 442 mm (17.40 in.)Depth: 840 mm (33.07 in.)
